Unlocking Biological Wastewater Treatment: How Fine Bubble Disc Diffusers Maximize Aeration Efficiency
Unlocking Biological Wastewater Treatment: How Fine Bubble Disc Diffusers Maximize Aeration Efficiency
Technical Overview & Industry Insight on High-Efficiency Micro-Bubble Aeration Systems
• Primary Function: Delivers uniform dissolved oxygen (DO) to aerobic microorganisms in biological tanks.
• Energy Efficiency: Slashes blower energy consumption by 25% to 40% vs. coarse bubble aerators.
• Key Specs: Standard 9-inch (215/260mm) and 12-inch (300/330mm) with EPDM/Silicone membranes.
• Prepared for: Alibaba.com Global Buyer Sourcing & Knowledge Base Documentation.
1. The "Lungs" of Wastewater Treatment: Why Fine Bubbles Matter
In municipal and industrial biological wastewater treatment plants (WWTPs), aeration systems routinely consume over 50% of the entire facility's electrical power. Delivering dissolved oxygen (DO) is vital to sustain aerobic bacteria that break down COD, BOD, and nitrogenous contaminants. Traditional coarse bubble aeration generates large air bubbles with rapid ascent velocities and minimal contact duration, resulting in low oxygen transfer efficiencies of only 10% to 15%.
Fine Bubble Disc Diffusers fundamentally transform this process. By dispersing air into millions of microscopic bubbles (1 to 3 mm in diameter), they expand the liquid-gas interfacial contact area by orders of magnitude and slow down the bubble ascent rate. This elevates the Standard Oxygen Transfer Efficiency (SOTE) to 30%–42%, delivering dramatic reductions in blower energy consumption.

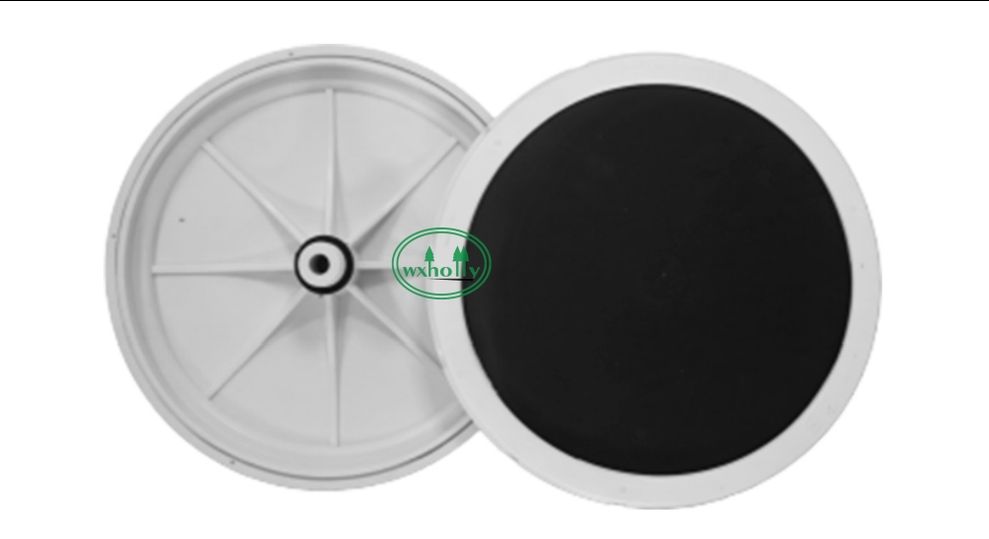

Figure 1: Fine Bubble Disc Diffuser - Perforated Elastomer Membrane and Radial Reinforced Support Plate
2. Precision Anatomy: Key Structural Components
1. High-Grade Elastomer Membrane (EPDM / Silicone):
Features precision mechanical micro-slits. When aeration air is introduced, the membrane flexes open to release ultra-fine bubbles. When air shuts off, the membrane elastic memory snaps micro-slits closed, acting as an immediate barrier against sludge intrusion.
2. Radial Reinforced Support Chassis (Base Plate):
Engineered from virgin Polypropylene (PP) or ABS. The molded radial rib pattern withstands extreme hydrodynamic water depths (up to 8m) while evenly distributing air across the entire active membrane surface.
3. Integrated Anti-Backflow Check Valve & Threaded Connection:
Features an integrated one-way check valve combined with a 3/4" or 1" male NPT/BSP threaded connector and EPDM sealing gasket for rapid, leak-free installation onto lateral distribution pipes.
4. Secure Clamp Retaining Ring:
A high-tensile locking collar securely clamps the membrane edge to prevent tear-off or leakage during cyclic pulsing.
3. Basin Grid Array & Export Packaging Standard

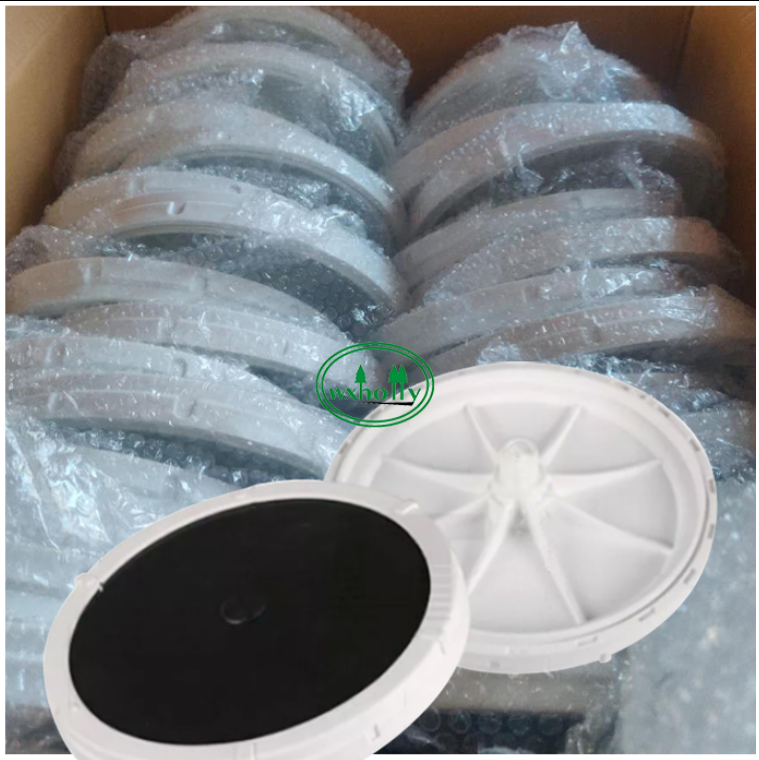

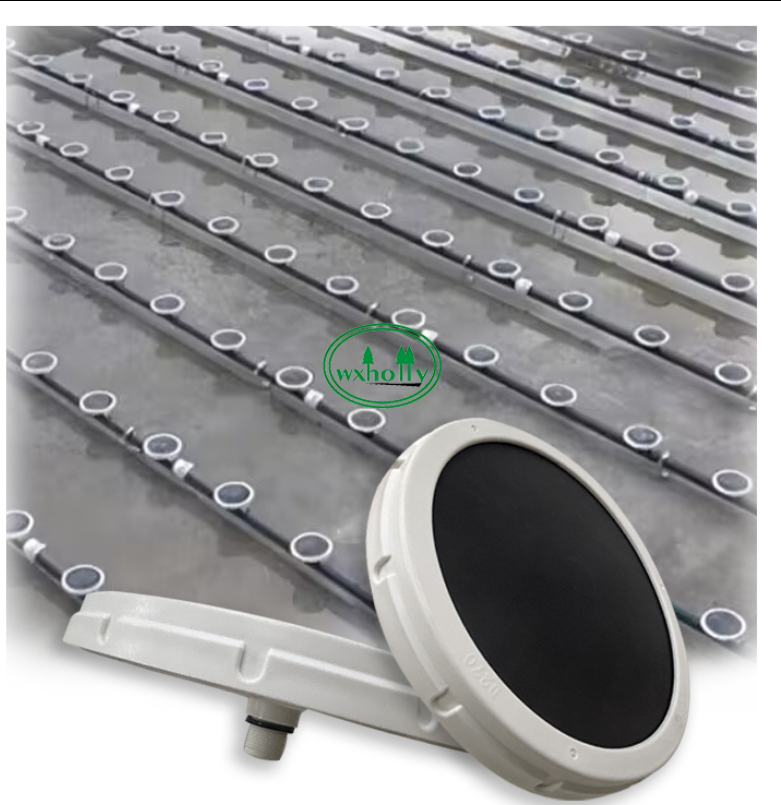

Figure 2: Basin Pipe Grid Layout Figure 3: Export Bubble Cushion Packaging
4. Engineering Specifications: 9-Inch vs 12-Inch Series

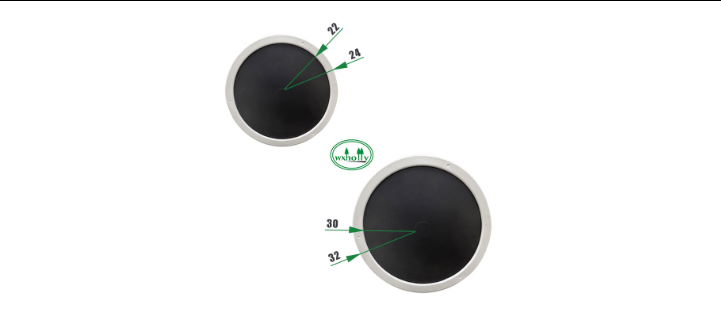

Figure 4: Dimensional Blueprint - Active Aeration Diameter vs Outer Retaining Frame
|
Technical Parameter |
9-Inch Model (D215 / D260) |
12-Inch Model (D300 / D330) |
|
Membrane Active Diameter |
215 mm – 220 mm (Inner Active Area) |
295 mm – 300 mm (Inner Active Area) |
|
Outer Retaining Diameter |
240 mm – 260 mm (Outer Frame) |
320 mm – 330 mm (Outer Frame) |
|
Recommended Airflow Rate |
1.5 – 3.0 m³/h (Peak: 5.0 m³/h) |
2.0 – 6.0 m³/h (Peak: 10.0 m³/h) |
|
Standard Oxygen Transfer (SOTE) |
30% – 38% (at 4–6m Submergence) |
32% – 42% (at 4–6m Submergence) |
|
Elastomer Material Options |
EPDM / Silicone / PTFE Composite |
EPDM / Silicone / PTFE Composite |
|
Connection Thread Specs |
3/4" Male NPT / BSP Threaded |
3/4" or 1" Male NPT / BSP |
5. Primary Industrial & Municipal Applications
• Municipal Sewage Treatment: A/O, A2/O, SBR, CASS, and MBR aerobic biological basins.
• Heavy Industrial Effluent: Pulp & paper, textile dyeing, food processing, and chemical wastewater treatment.
• Recirculating Aquaculture Systems (RAS): Silent, high-density dissolved oxygen replenishment without turbulent fish stress.
• River & Canal Ecological Remediation: Floating or submerged bottom aeration for water quality improvement.
6. Sourcing & Quality Checklist for Global Buyers
When evaluating suppliers on Alibaba.com, professional buyers should inspect:
1. Plasticizer Resistance: Ensure virgin EPDM formulation to prevent membrane embrittlement or shrinkage.
2. Dynamic Headloss Curve: High-quality diffusers maintain lower system backpressure (< 3.5 kPa) under rated airflow.
3. Sealing Quality: Check presence of integrated EPDM gasket and leak-proof check valve mechanism.
4. Packaging Integrity: Individual bubble bag packing prevents thread stripping during maritime shipment.
