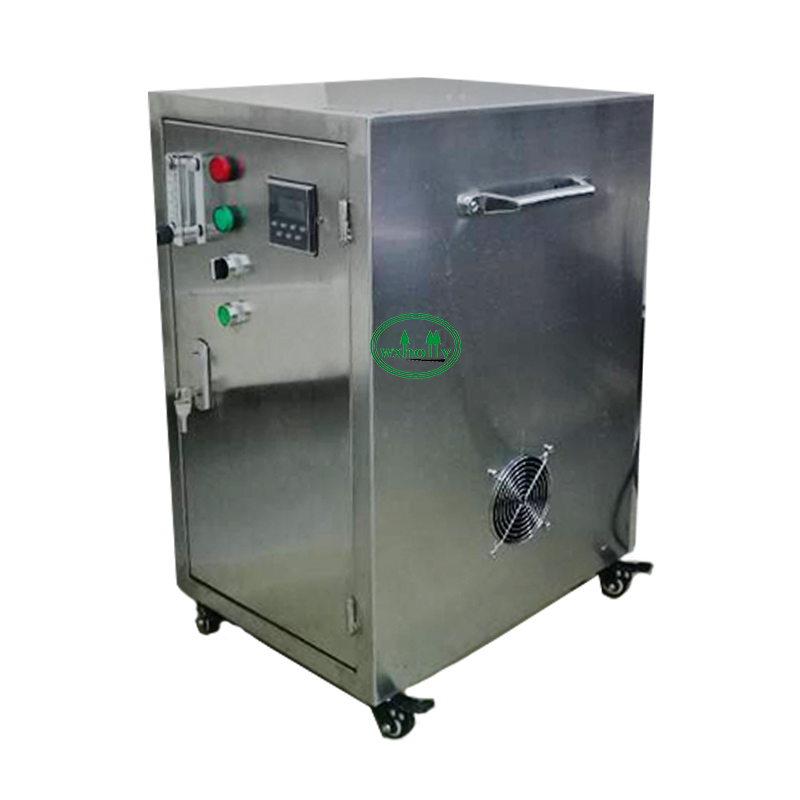

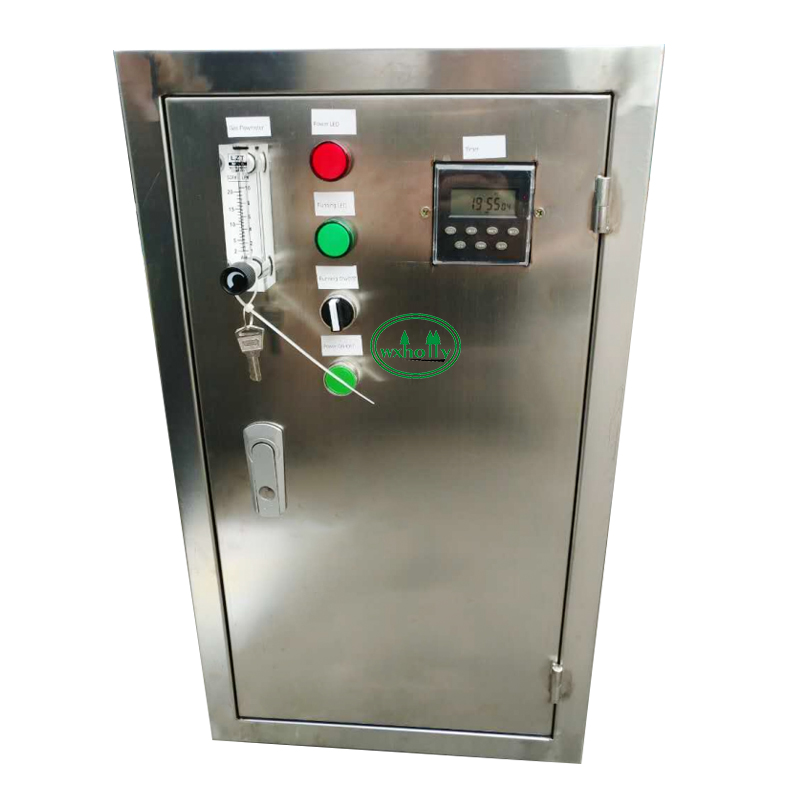

Nano Bubble Generator Machine Floating Generator Stainless Steel Nano Micro Bubble Generator
Nano Bubble Generator is presented by WX Holly,a promising CE and ISO certificated product utilized with its own nano bubble technology,its application range is particularly wide in different industries and has huge development potential as the functional properties of nano bubble: bubbles with anion,bubbles explosion with antiseptic effect,dissolved oxygen in water increasing rapidly,high efficiency and energy saving in water treatment. Advanced & mature technology and development continuing to expand its application range,market will grow.
The nano bubble generator could work separately or work together with its corresponding models of Oxygen Generator or Ozone Generator which could replace the current high-pressure decompression dissolved flotation of fine bubbles and part of the aeration equipment.
50HZ Nano Bubble Generator
| HLYZ-01 | HLYZ-02 | HLYZ-06 | HLYZ-012 | |
| Flowrate (m³ /h) | 1 | 2 | 6 | 12 |
| Voltage (V) | 220/380 | |||
| Power (kW) | 0.55 | 1.1 | 3 | 5.5 |
| Dimensions (mm) | 660*530*800 | 660*530*800 | 850*530*850 | 850*560*850 |
| Working Temperature ( °C) | 0-100°C | |||
| Treating Capacity(m3) | 120 | 240 | 720 | 1440 |
| Bubble Diameter | 80nm-20µm | |||
| Gas-liquid Mixing Proportion | 1:8-1:12 | |||
| Gas-liquid Dissolving Rate | ＞95% | |||
| HLYZ-01 | HLYZ-03 | HLYZ-08 | HLYZ-17 | HLYZ-34 | HLYZ-66 | |
| Flowrate (m³ /h) | 1 | 3 | 8 | 17 | 34 | 66 |
| Voltage (V) | 220/380/415/440 | |||||
| Power (kW) | 0.75 | 1.4 | 4 | 7.5 | 11 | 18.5 |
| Dimensions (mm) | 660*530*800 | 660*530*800 | 850*550*850 | 860*560*850 | 915*678*1280 | 1100*880*1395 |
| Working Temperature ( °C) | 0-100°C | |||||
| Treating Capacity(m3) | 120 | 240 | 720 | 1440 | 4080 | 7920 |
| Bubble Diameter | 80nm-20µm | |||||
| Gas-liquid Mixing Proportion | 1:8-1:12 | |||||
| Gas-liquid Dissolving Rate | ＞95% | |||||

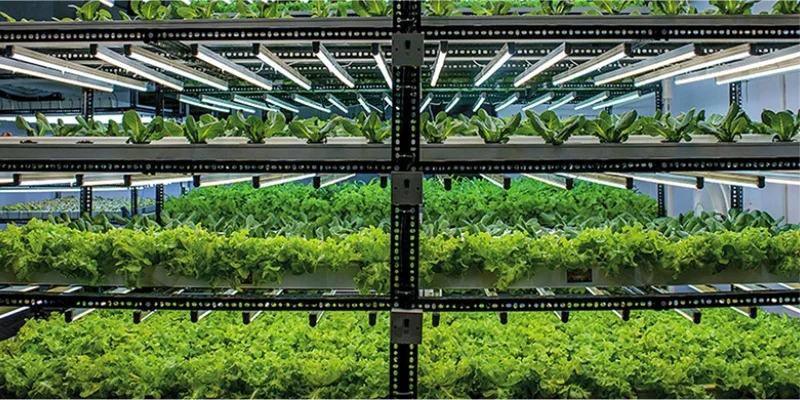

Nano Bubble Generator Hydroponic Gardening System

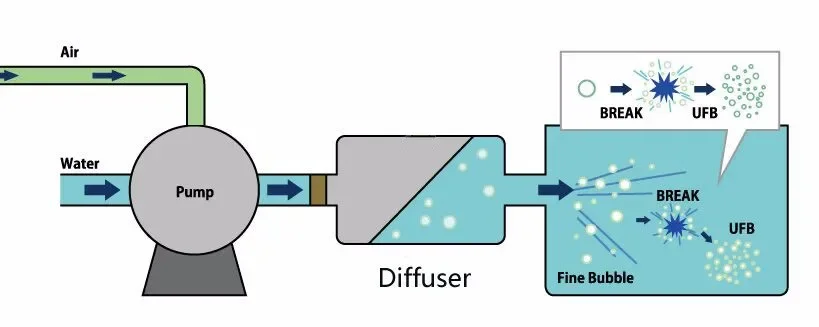

1.Using high-pressure rotary flow transient release technology,high density of micro nano bubble,non-clogging,easy to maintain.
2.Functional bubble diameter of 200 nm ~ 50μm , saturated water can be quickly produced with good gas-liquid dissolving effect.
3.Stable performance, high efficiency, low noise.
4.Wide range of application,such as : waste water /gas treatment aquaculture,agricultural irrigation,bath and so on.

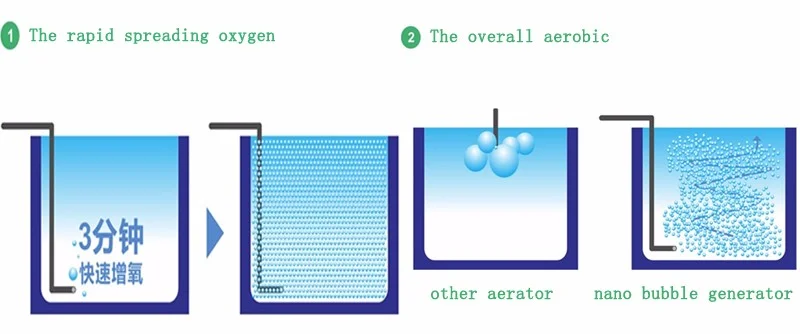

Ozone wastewater treatment will have a nanoscale mix water and air, greatly improve the water solubility from bottom to top.(water solubility is greater than 5 mg/L), the residence time of nano bubbles in the water 100 times longer than ordinary bubbles, cover a broader, mixing, achieve the goal of overall aerobic.

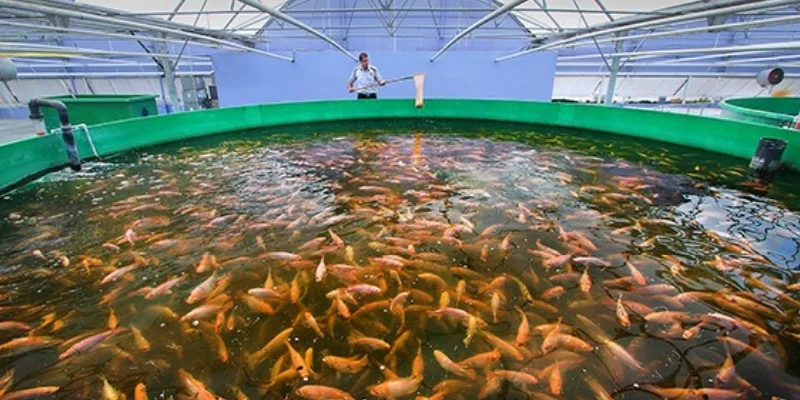

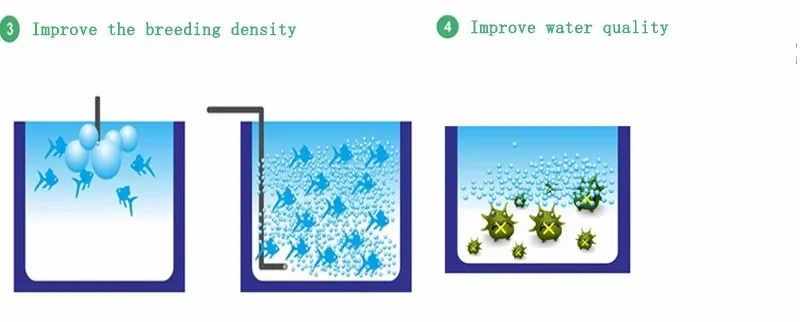

Normal aerator water oxygen absorption rate is 3% 5%, nano bubbler generator water oxygen absorption rate of 25% or more, can make the breeding density increased by more than 50%, the use of more effective area.
Nano Bubbles can supply and enrich dissolved oxygenin water so that can purify and sterilize the water efficiently.Nano Bubble can grow healthy fishes faster to use less fish feed and drugof the nursery.Nano Bubbles can save the working time and perationcost.

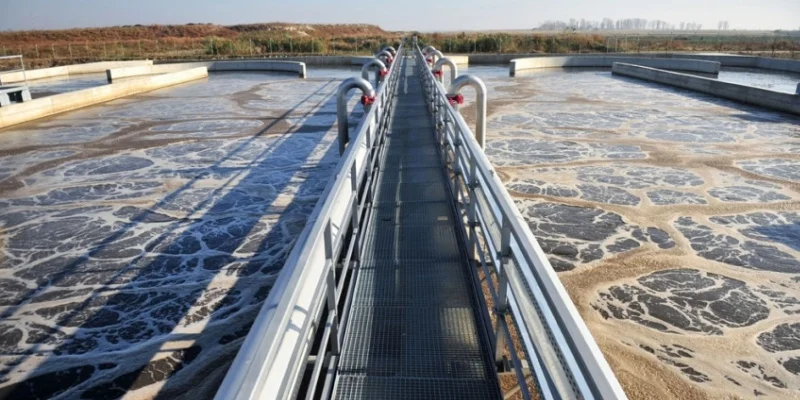

The mainstream of factory wastewater technology requires processes such as coagulation, aeration, and sedimentation treatment, and the mainstream of aeration treatment is biological treatment, which requires a vast treatment pond.
