Vortex Ring Blower (Side Channel Blower)
The "Air-Powered Heart" Behind Wastewater Treatment and Aquaculture Aeration
Stand beside the aerobic tank of a wastewater treatment plant, or inside the aeration room of an aquaculture farm — you will often see silver-grey machines running quietly. They do not pump water or stir with paddles; instead, they continuously "inject" air into the water. These machines are Side Channel Blowers — also known as Vortex Ring Blowers or Regenerative Blowers. Today, let's explore the science and industrial value behind this "air-powered heart."
1. What Exactly Is It?

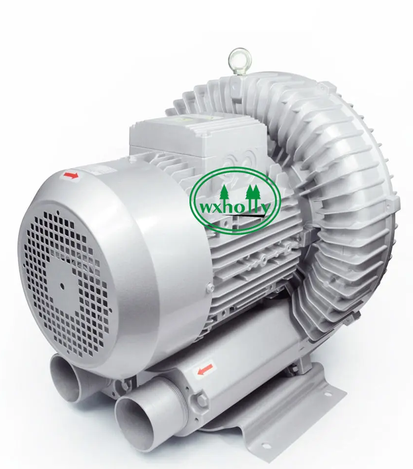

A side channel blower is a medium-to-low pressure, high-volume air pump. Visually, it consists of a circular impeller housing, a motor, a cooling fan, and inlet/outlet silencers. Functionally, it handles both pressure (blowing) and vacuum (suction) duties — which is exactly why it is so widely used in industrial dust collection, pneumatic conveying, vacuum suction, and aeration applications.
dappled sunshine.
1. What Exactly Is It?
A side channel blower is a medium-to-low pressure, high-volume air pump. Visually, it consists of a circular impeller housing, a motor, a cooling fan, and inlet/outlet silencers. Functionally, it handles both pressure (blowing) and vacuum (suction) duties — which is exactly why it is so widely used in industrial dust collection, pneumatic conveying, vacuum suction, and aeration applications.
2. Working Principle: The Regenerative Cycle — Three Gains from One Rotation
The secret of a side channel blower lies in its impeller + annular side channel structure:
Because the gas is repeatedly compressed within the side channel, this design is called the "regenerative" principle. Compared with traditional blowers, it has no internal compression chamber, no gear meshing, and the impeller never touches the housing — resulting in oil-free operation, low wear, maintenance-free service, and a long service life, with noise substantially reduced by silencers.
3. What Role Does It Play in Wastewater Treatment?
The side channel blower is the "oxygen supply workhorse" of small and medium-sized wastewater treatment systems, mainly in the following applications:
1. Aerobic Biological Aeration
Activated sludge processes and MBBR biofilm technologies both rely on aerobic microorganisms to break down pollutants — and the dissolved oxygen those microbes need to "breathe" is delivered by blowers through fine bubble diffusers. The steady airflow from a side channel blower is cut into fine bubbles by the diffuser, dramatically increasing the air-water contact area and improving oxygen transfer efficiency. This is also why blowers and MBBR bio filter media are a classic pairing in wastewater treatment.
2. Air Lifting and Mixing
Using the "air-lift" effect created by high-pressure airflow in a vertical pipe, sludge and settled solids can be lifted and conveyed from the bottom of the tank — no extra mechanical pump required, with a simple structure that resists clogging.
3. Backwashing and Scouring
After filter beds or membrane modules have run for a period, high-pressure air from the blower is used to backwash the filter media or membrane surface, effectively restoring filtration efficiency and extending service life.
4. "Invisible Aeration" in Aquaculture
In aquaculture, the side channel blower is equally vital. The fine bubble / nano bubble aeration systems it drives push air into the pond bottom as tiny bubbles, delivering:
- Uniform oxygenation across the pond: bubbles rise from the bottom, driving vertical water circulation, breaking thermal stratification, and eliminating anoxic "dead zones" near the sediment;
- Energy efficiency: compared with mechanical aerators such as paddle wheels, blower-driven aeration has lower power density and higher oxygenation efficiency — ideal for high-density farming;
- Zero disturbance to stock: the gentle airflow does not startle fish and shrimp, making it suitable for salmon, barramundi, cod, carp, eel, and many other species.

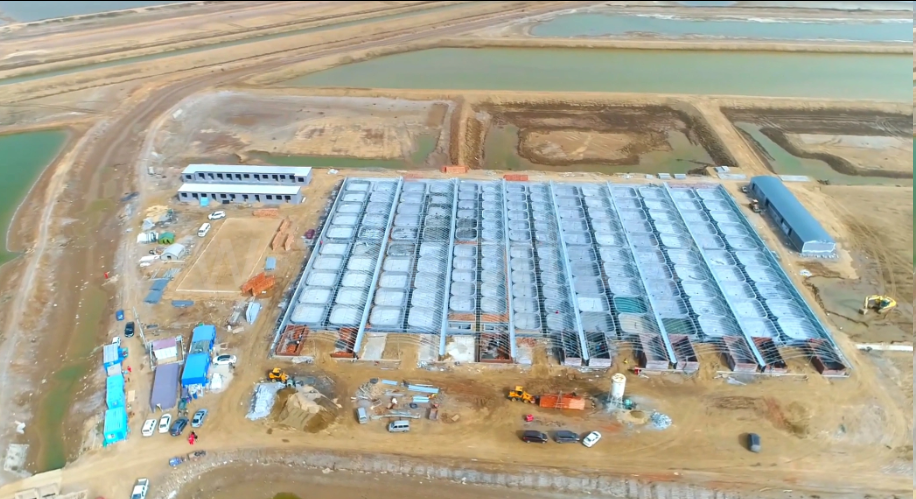

A large-scale intensive aquaculture facility: rows of circular/rectangular ponds with blower-driven aeration systems — a typical application site for side channel blowers.

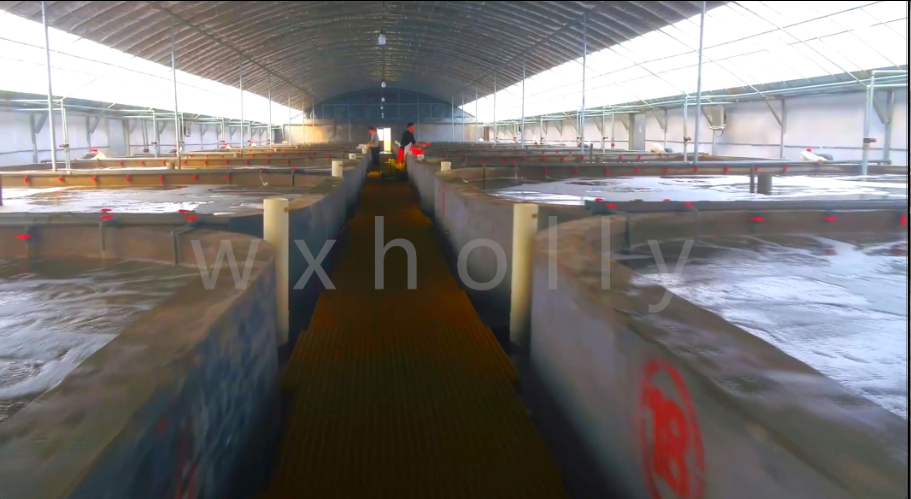

Inside a pond house: pond water continuously agitated by the aeration system, with fine bubbles and live ripples visible on the surface, keeping dissolved oxygen stable.
5. Why Is It "Ready for Global Use"?

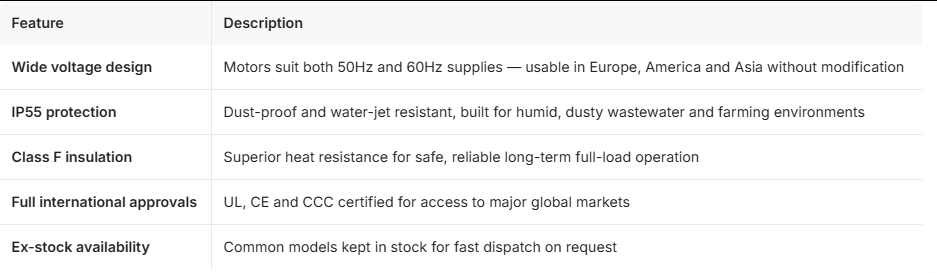

For exported equipment, voltage compatibility is one of the most troublesome issues. The wxholly G-Series side channel blower solves this concern elegantly:
Workshop photo: multiple blowers ready for shipment, with silencers, fasteners and wooden crate packaging — enabling fast delivery.
6. How to Select the Right Model?
Depending on your working conditions, the G-Series offers four configurations:
Single-stage standard: ideal for general aeration and pneumatic conveying at medium-to-low pressure; Two-stage series: for more demanding resistance requirements — higher pressure with more headroom; Single-stage high-pressure: for deep-water aeration, filter backwashing and other applications needing higher discharge pressure; Multi-stage high differential pressure: for extreme back-pressure and high-pressure-differential conditions, delivering enhanced reliability.
From wastewater purification to aquaculture, the side channel blower turns air into productivity through its clever regenerative principle: it keeps microorganisms working efficiently, lets fish and shrimp breathe freely, and makes industrial processes cleaner and more energy-efficient. Choosing a blower with wide voltage, high protection rating and complete certifications is not just an equipment purchase — it is insurance for the stable operation of your entire system.
