Geomembrane

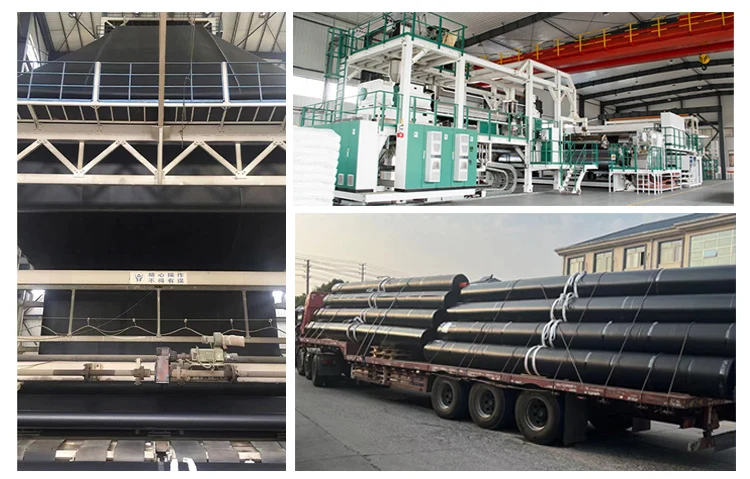

The HDPE smooth (rough) geomembrane is manufactured with high-quality high-density polyethylene resin and imported from Germany with flat extrusion equipment and four layer co extrusion blown film equipment. Complete specifications; Smooth (rough) geomembrane thickness: 0.25-3.0mm, with a maximum width of up to 8m.

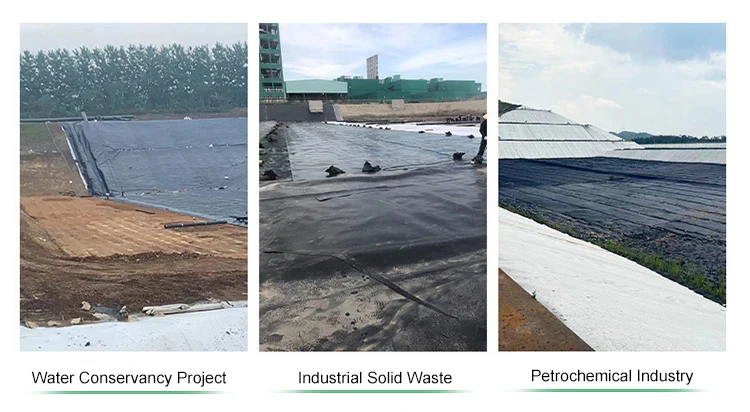

*Environmental protection projects such as garbage disposal sites, sewage treatment plants, petrochemicals, metallurgy, etc;

*Water conservancy projects such as reservoirs, embankments, rivers, lakes, etc;

*Subway, tunnel, underground warehouse, etc;

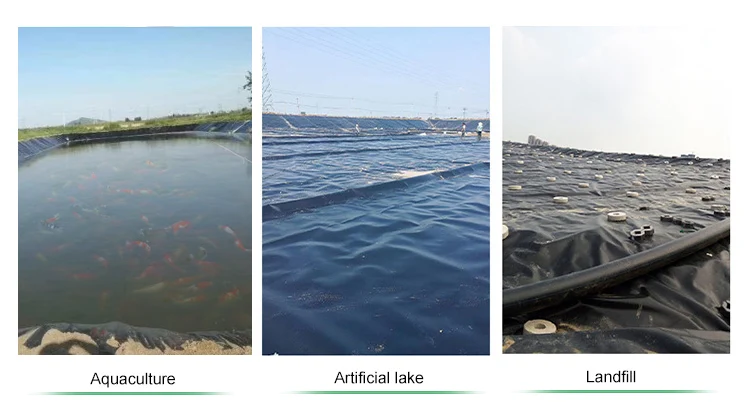

*Artificial lakes, scenic spots, and other landscaping projects;

*Construction market and other waterproofing projects;

1.With a bult-in protector,the motor turns off automatically when overheated or when the three-phase mains loses phase, so as to protect the motor from burning out;

2.The gear is made of chromium-manganese-titaium alloy sleel,with carbonitriding on the surface,which can prolong life span greatly;

3.To ensure endurable use in the sea water or highly erosive industrial waste,engineering plastic impaller and stainless steel impeller are deyeloped according to the requirements of varied usage environments and specific demands of users,eliminating the need of frequent change of impellers or painting.

Technical indicators of smooth HDPE geomembrane：

No.	_Target	Test Value
No.	_Target	0.75mm	1.0mm	1.25mm	1.50mm	2.00mm	2.50mm	3.00mm
1	Minimum density(g/cm2)	0.939
2	Tensile property
	Yield strength (stress),N/min	11	15	18	22	29	37	44
	Breaking strength (stress),N/min	20	27	33	40	53	67	80
	Elongation at yield,%	12
	Elongation at break,%	700
3	Right angle tear strength,N	93	125	156	187	249	311	374
4	Puncture strength,N	240	320	400	480	640	800	960
5	Resistance to environmental stress cracking	300
6	Conductex
	Carbon black content (range),%	2.0~3.0
	Carbon black Dispersity	9 out of 10 observation areas should belong to level 1 or 2, and no more than 1 observation area should belong to level 3
7	Oxidation induction time (OIT)
	StandardOIT,min	100
	High-handedOIT,min	400
8	85 frying aging (minimum average)
	After 90 days of baking, the standard OIT remains at%	55
	Bake for 90 days, high-pressure OIT retention%	80
9	UV resistance
	UV irradiation for 1600 hours, standard OIT retention%;	50
	UV irradiation for 1600h, high-pressure OIT retention%	50
10	-70 low-temperature,impact demonization performance	pass through
11	Water vapor permeability coefficient	≤1.0&×10-13
12	Dimensional stability	±2
