Aquaculture Ras System Filter Drum Rotary Drum Vacuum Filter For Koi Fich Pond

Box Type Drum Filter

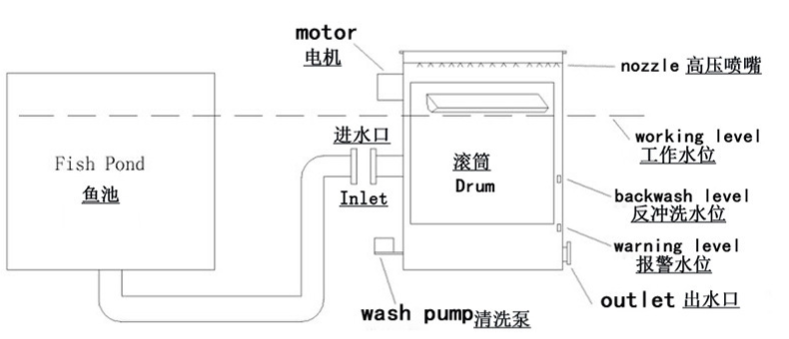

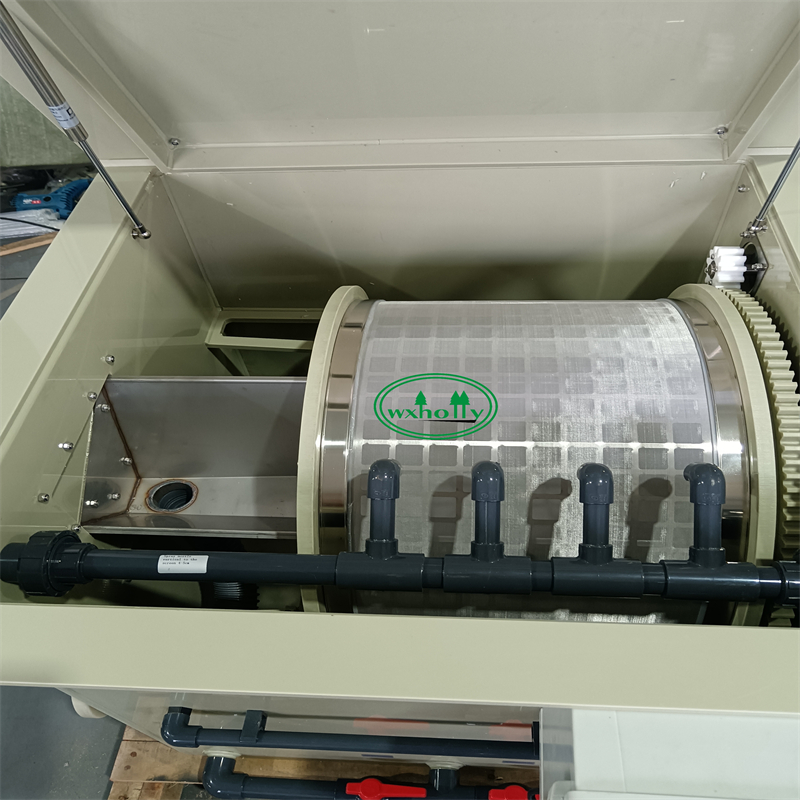

The drum filter is mainly composed of four parts: tank component, roller component, backwash component and liquid level automatic control component. It is made of non-toxic seawater corrosion-resistant high-quality engineering plastic materials. A stainless steel filter screen is fixed on the rotatable drum, and the tiny suspended substances in the water are separated and filtered through the screen and finally achieve solid-liquid separation. During the filtering process, small suspended particles in the water will cause the screen to be blocked. When the screen is blocked, the liquid level automatic control component works, and the backwash water pump and roller reducer automatically start working to make the screen timely cleaning to keep the equipment in good working condition.



	Capacity	Dimension	Drive Motor	Backwash Pump	Water Inlet	Sewage draining exit	Water Outlet	Weight
1	10m3/h	95*65*70cm	220v 120w	SS304 220v 370w	63mm	50mm	110mm	40kg
2	20m3/h	100*85*83cm	220v 180w	SS304 220v 370w	110mm	63mm	110mm	55kg
3	30m3/h	100*95*95cm	220v 180w	SS304 220v 370w	110mm	63mm	110mm	75kg
4	50m3/h	120*100*100cm	220v 300w	SS304 220v 370w	160mm	63mm	160mm	105kg
5	100m3/h	145*105*110cm	220v 300w	SS304 220v 370w	160mm	63mm	200mm	130kg
6	150m3/h	165*115*130cm	220v 370w	SS304 220v 370w	200mm	63mm	200mm	185kg
7	200m3/h	180*120*140cm	220v 370w	SS304 220v 370w	200mm	63mm	200mm	230kg



1.  Durable, safe and energy saving .

2.  Replacing the water pressure requirements of the sand tank, it is energy-saving, non-blocking, and can run continuously, effectively filtering  impurities in the water. Various sizes can be customized.

3.Our company's drum filter is designed for the problems that the existing filters cannot work automatically, is not resistant to corrosion, the screen is easy to break, easy to block, equipment failure rate is high, and maintenance and operation are difficult. It is one of the solid-liquid separation technologies in the early stage of water treatment in the aquaculture  system. This product purifies the water by separating the solid waste in the aquaculture water to achieve the purpose of recycling.
