Sand Filter

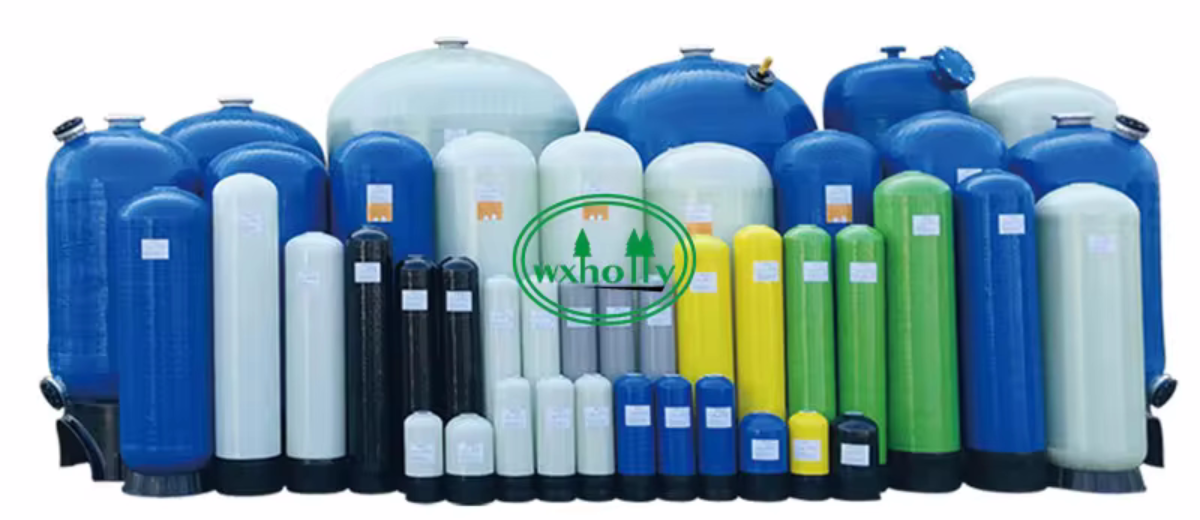

The filter is made of high-quality glass fiber and resin; the filter water distributor is designed based on Karman vortex street principle to effectively improve the filtration and backwash efficiency. After the tank water is filtered by sand tank, the impurities and suspended solids in the precipitation can be effectively removed, and the water quality can be purified. The product specification is complete, suitable for all kinds of specifications of aquarium, aquarium, factory breeding, landscape fish pool, swimming pool, landscape pool, rainwater collection and water park and other occasions of circulating water treatment and filtration equipment.

Model	Size (D)	inlet/outlet (inch)	flow (m3 /h)	filtration (m2 )	Weight (kg)	height H (mm)	Package Size	Weight (kg)
SCD400	16"/￠400	1.5"	6.3	0.13	35	650	425*425*500	9.5
SCD450	18"/￠450	1.5"	7	0.14	50	730	440*440*540	11
SCD500	20"/￠500	1.5"	11	0.2	80	780	530*530*600	12.5
SCD600	25"/￠625	1.5"	16	0.3	125	880	630*630*670	19
SCD700	28"/￠700	1.5"	18.5	0.37	190	960	710*710*770	22.5
SCD800	32"/￠800	2"	25	0.5	350	1160	830*830*930	35
SCD900	36"/￠900	2"	30	0.64	400	1230	900*900*990	38.5
SCD1000	40"/￠1000	2"	35	0.79	620	1280	1040*1040*1170	60
SCD1100	44"/￠1100	2"	40	0.98	800	1360	1135*1135*1280	69.5
SCD1200	48"/￠1200	2"	45	1.13	875	1480	1230*1230*1350	82.5
SCD1400	56"/￠1400	2"	50	1.53	1400	1690	1410*140*1550	96





◆Filter body covered with ultraviolet-proof layers of polyurethane

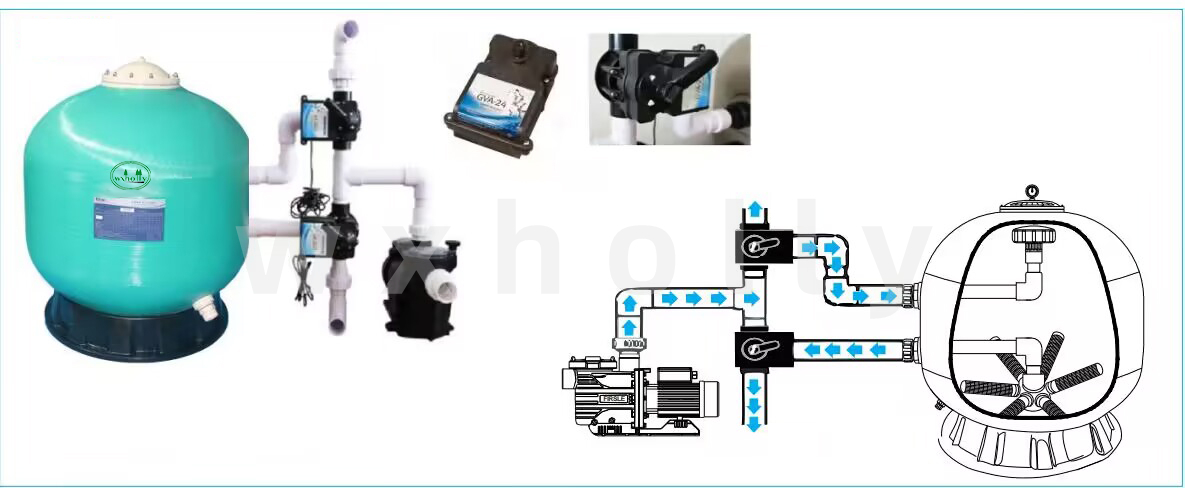

◆Ergonomic six-way valve in seating design

◆With excellent filtering capabilities

◆Anti-chemical corrosion

◆It equips with gauge

◆This Model with the function of flushing, you can run it only by simple

◆operation when in need , thus additional costs at maintenance could be saved.

◆The equipment of sand valves at the bottom row provide convenience for removal or replacement of sand in filter
