Model No: Nano Hose

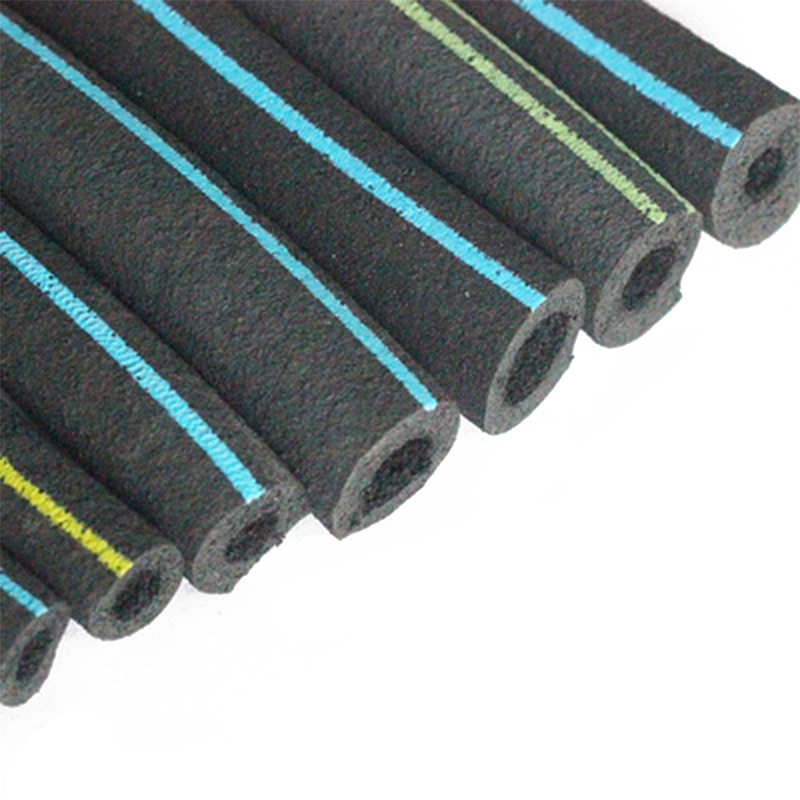

Nano Hose Air Diffuser Micro Nano Bubble Aeration Tubes Water Aerator Rubber Aerotion Hose

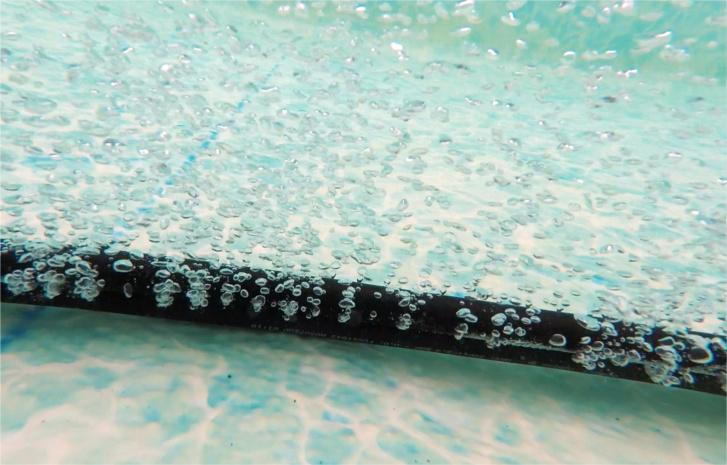

Aeration hose's tiny pore size creates extremely small diameter bubbles. The smaller a bubble of air the more efficiently it transfer oxygen into water(more surface area). Small bubbles also take take longer to rise once they are introduce into the water.Slowing rising, small-diameter bubbles mean more contact with the water and a much higher rate of oxygen transfer.By creating significantly smaller bubbles, more efficiency,aeration tube are able to deliver high rates of oxygen transfer and energy efficiency.
Quantity :
Contact Now

Nano Hose

Aeration hose's tiny pore size creates extremely small diameter bubbles. The smaller a bubble of air the more efficiently it transfer oxygen into water(more surface area). Small bubbles also take take longer to rise once they are introduce into the water.Slowing rising, small-diameter bubbles mean more contact with the water and a much higher rate of oxygen transfer.By creating significantly smaller bubbles, more efficiency,aeration tube are able to deliver high rates of oxygen transfer and energy

efficiency.


SizePackagePackage Size
16*10mm200m/rollΦ500*300mm,21kg/roll
18*10mm100m/rollΦ450*300mm,15kg/roll
20*10mm100m/rollΦ500*300mm,21kg/roll
25*10mm100m/rollΦ550*300mm,33kg/roll
25*12mm100m/rollΦ550*300mm,29kg/roll
25*16mm100m/rollΦ550*300mm,24kg/roll
28*20mm100m/rollΦ600*300mm,24kg/roll
Parameters of 16mm Nano hose
ODφ16mm±1mm
IDφ10mm±1mm
Average Hole Sizeφ0.03～φ0.06mm
Hole Layout Density700～1200pcs/m
Bubble Diameter0.5～1mm(soft water) 0.8～2mm(sea water)
Effective Areation Volume0.002～0.006m3/min.m
Air flow0.1～0.4m3/h.m
Service aera1～8m2/m
Supporting Powermotor power per 1kW≥200m nano hose
Pressure losswhen 1Kw=200m≤0.40kpa , underwater loss≤5kp
Suitable configurationmotor power 1Kw supporting 150～200m nano hose






Nano Bubbles can supply and enrich dissolved oxygenin water so that can purify and sterilize the water efficiently.Nano Bubble can grow healthy fishes faster to use less fish feed and drugof the nursery.Nano Bubbles can save the working time and perationcost.

Nano Bubbles can supply and enrich dissolved oxygenin water so that can accelerate growth of vegetables and bring a highyield.Nano Bubbles can also enhance sterilizing effect in water. Characteristic of vegetable grown by nano bubbles are large,lushand tasty.

The mainstream of factory wastewater technology requires processes such as coagulation, aeration, and sedimentation treatment, and the mainstream of aeration treatment is biological treatment, which requires a vast treatment pond.
