Fine Bubble Tube Diffuser Aeration Biological Wastewater treatment
Manufactured by compression molding with a standard cure,low plasticizer content, and 1mm or 2mm perforations.Compression molding with modern equipment utilizing individual thermocouples and vacuum technology ensures a repeatable very high quality product.
Silicon membranes offer high temperture resistance ,and chemical resistance that differs from other products .Silicon is an inorganic ,and therefore offers excellent resistance tomany organic wastes.Our formulationn is designed to resist tearing and creep,while producing fine bubbles at a modest headloss.

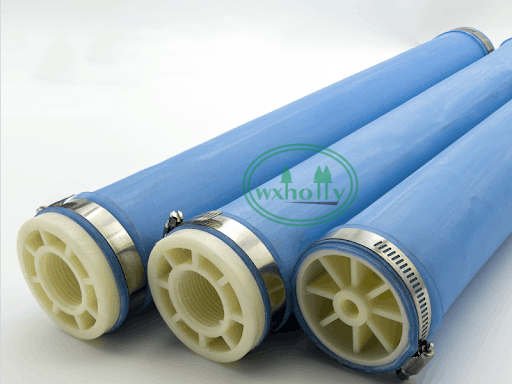

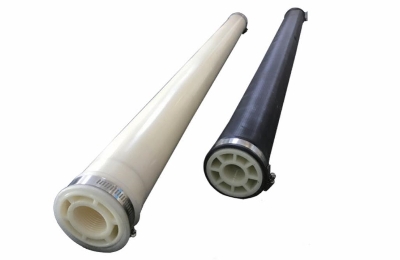

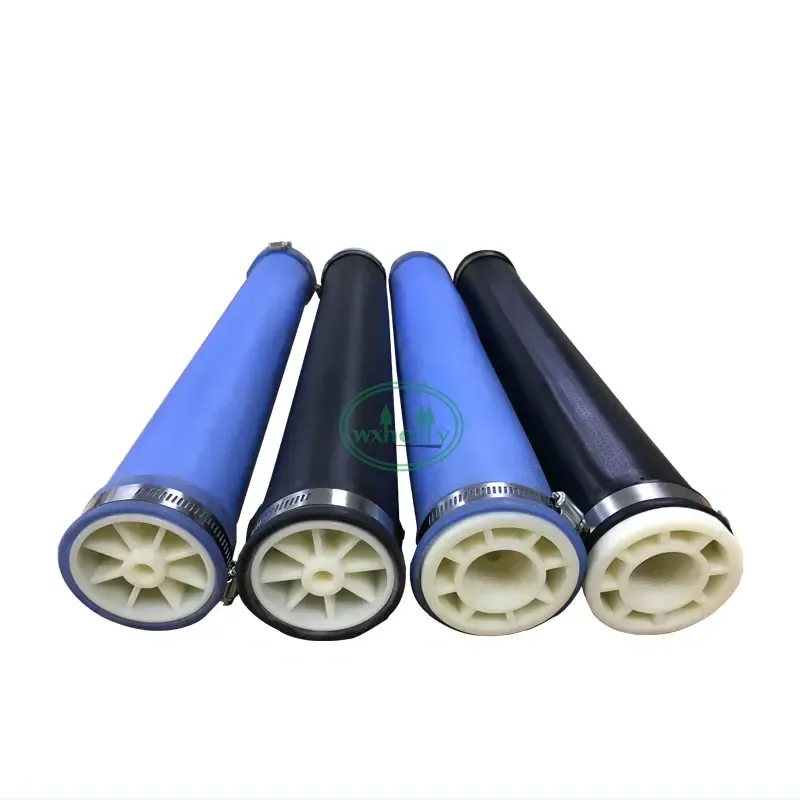

Epdm aeration hose membrane fine bubble tube diffuser

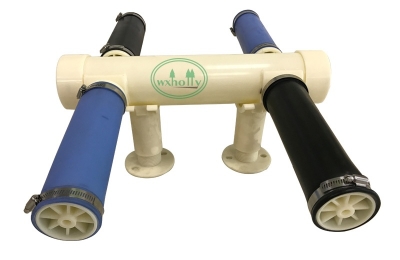

Fine Bubble Tube Diffuser Aeration can be connected on one side or in pairs to different rectangular and round tubes (ABS material) with the appropriate adapter. The membranes are manufactured with premium quality EPDM material and are available with fine or coarse-bubble perforation. The support tubes(ABS or PVC material)can be reused when membranes are replaced.
MOC:EPDM
Manufactured by compression molding with a standard cure,low plasticizer content, and 1mm or 2mm perforations.Compression molding with modern equipment utilizing individual thermocouples and vacuum technology ensures a repeatable very high quality product.
MOC:Silicon
Silicon membranes offer high temperture resistance ,and chemical resistance that differs from other products .Silicon is an inorganic ,and therefore offers excellent resistance tomany organic wastes.Our formulationn is designed to resist tearing and creep,while producing fine bubbles at a modest headloss.
| Type | Membrane Tube Diffuser | ||
| Model | Φ63 | Φ93 | Φ113 |
| Length | 500/750/1000mm | ||
| Moc | EPDM/Silicon membrane ABS Tube | ||
| Connector | 1''NPT 3/4'' NPT | ||
| Bubble Size | 1-2mm | ||
| Desigh Flow | 1.7-6.8m³/h | 3.4-13.6m³/h | 3.4-17.0m³/h |
| Flow Range | 2-14m³/h | 5-20m³/h | 6-28m³/h |
1.Simple structure, convenient installation and maintenance, low system price.
2.High oxygen utilization,reliable performance, high power efficiency, small resistance, low energy consumption
3.Avoid sewage intrusion,not easy to clog the stoma
4.Convenient management, no air purification, no backwash

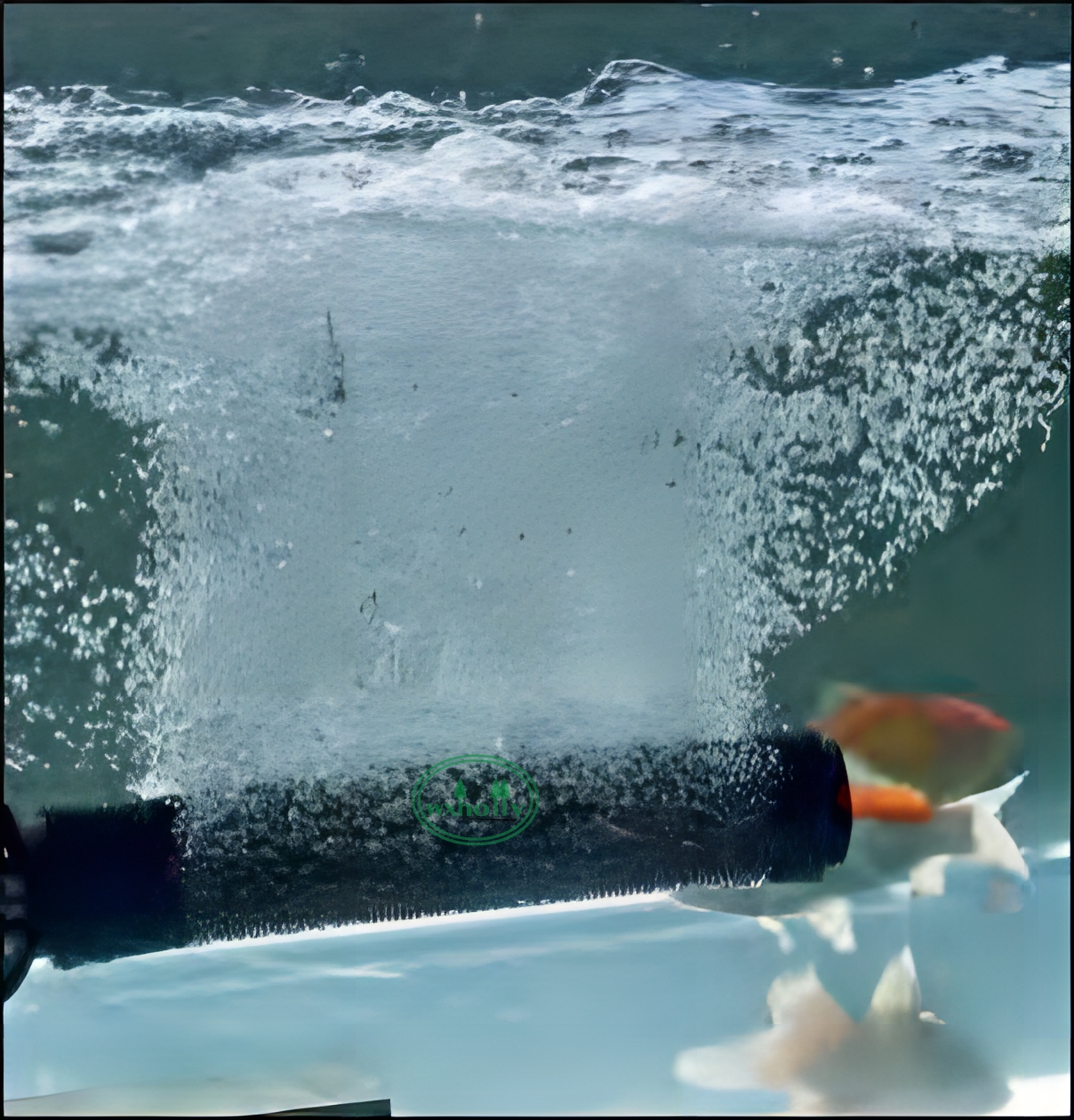

5.Advanced membrane perforation technique creates extremely fine, uniform bubble pattern for optimal oxygen transfer, which leads high oxygen conversion rate and can achieve the effect of mixing and stirring
6.Imported raw material can remain flexible for a long time, good chemical stability, no plasticizer, long service life
7.Acid and alkali resistance, non-hardening, not brittle, not aging.
♦ Preservation aeration of waste water
♦ Oxygenation of activation basins
♦ Oxygenation to stabilize sludge
♦ Aeration of rivers and lakes
♦ Aeration of fish ponds
♦ CO₂ admission for neutralization
